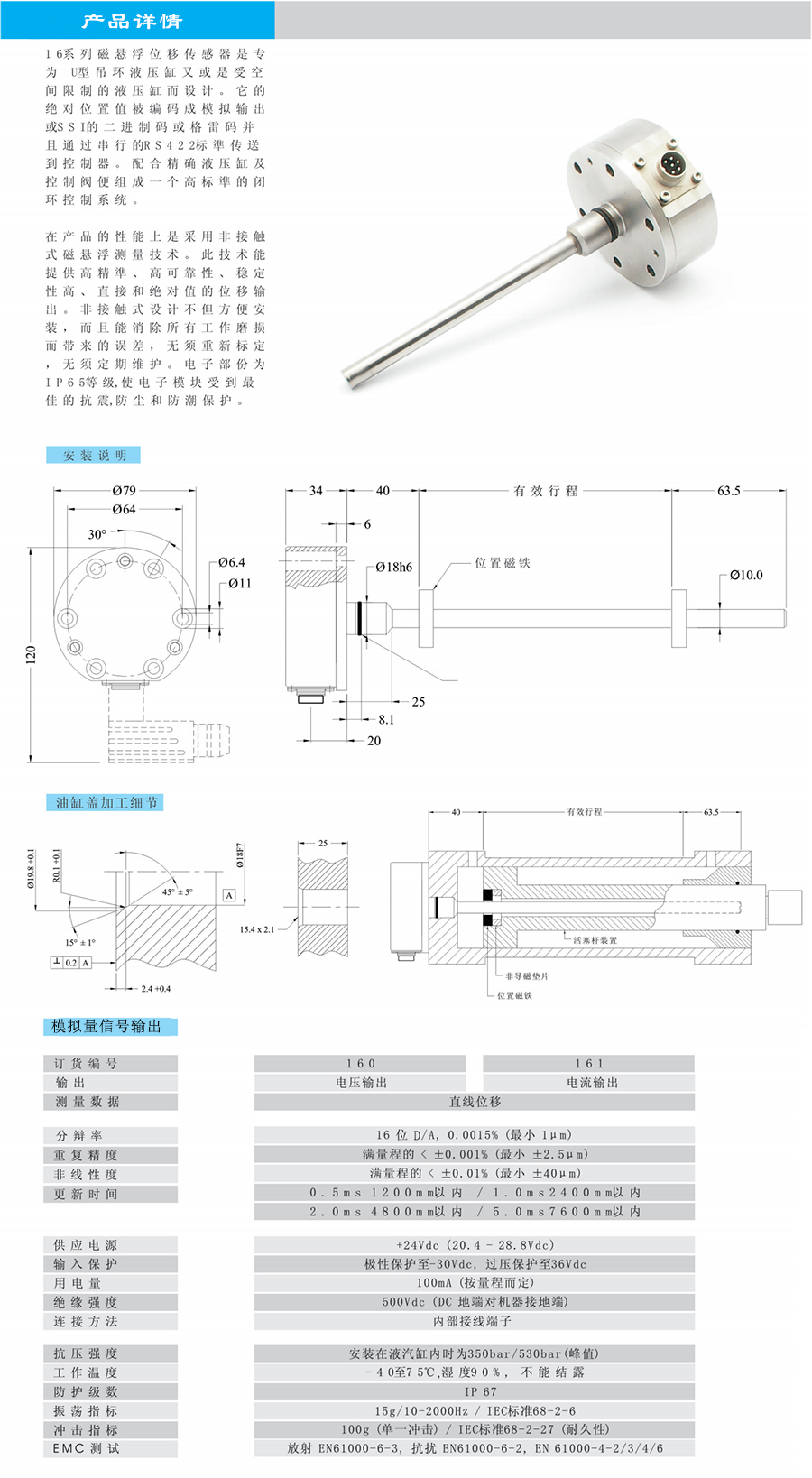

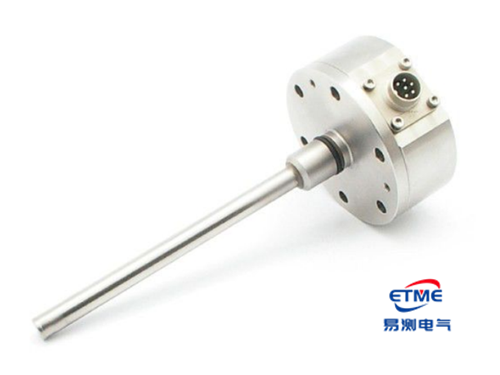

16系列磁懸浮/磁致伸縮位移傳感器是專為U型吊環液壓缸又或是受空間限制的液壓缸而設計。它的絕對位置值被編碼成模擬輸出或SSI的二進制碼或格雷碼并且通過串行的RS422標準傳送到控制器。配合精確液壓缸及控制閥便組成一個高標準的閉環控制系統。
在產品的性能上是采用非接觸式磁懸浮測量技術。此技術能提供高精準、高可靠性、穩定性高、直接和絕對值的位移輸出。非接觸式設計不但方便安裝，而且能消除所有工作磨損而帶來的誤差，無須重新標定，無須定期維護。電子部份為IP65等級,使電子模塊受到最佳的抗震,防塵和防潮保護。
16 series is design for hydraulic cyclinder with limited head space or clevis rod ends hydraulic cyclinder. Sensing rod is made by stainless steel which installed inside the hydraulic cyclinder. It has a wide variety of signal output selection included analog voltage, current, and SSI. It is a perfect combination with hydraulic valve to form a close-loop servo hydraulic system.
It adopts the non-contact magnetostrictive to provide feedback of fluid level and multi-interface level of a storage tank or process vessel. The non-contact feature provides exceptional ease of installation and guaratees almost unlimited mechanical life expectancy. The high versatile IP67 profile housing offers full protection against outside agents for use in harsh environments with high contamination and presence of dust.
