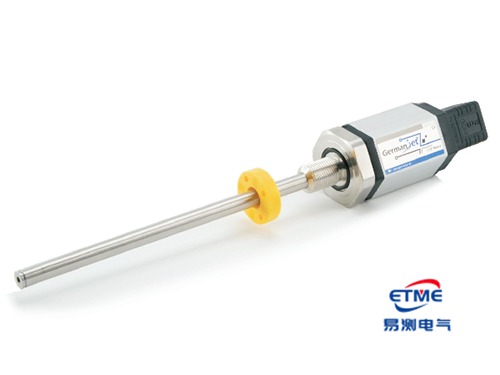

17系列內置模擬量磁致伸縮位移傳感器

17系列磁懸浮位移傳感器是專為液壓缸而設計。耐壓外管與六角法蘭為100%不銹鋼,可以直接安裝進液壓缸里。電子部份與耐壓外管為模塊組裝設計,即兩者可完全分離。在特殊情況下,只需撥出電子部份進行校淮,而耐壓外管無需與液壓缸分離。此設計減少重置液壓缸時間,大大提高生產效率。

電子部份為IP65等級,使電子模塊受到最佳的抗震,防塵和防潮保護。輸出連接為業界常用的油制插頭(DIN 43650),既方便又容易接線。除了適合液壓系統外,也同樣適合機械外置安裝。在無需定期維護情況下,提供絕對和準確的重復輸出。

The 17 series non-contact absolute position transducer is specially designed for hydraulic cylinder to provide precise, direct and absolute position feedback. Hydraulic body is made by stainless steel; it can be inserted directly into hydraulic cylinder. Electronic component and hydraulic body are modular design which can be detached easily. In some instance, if the transducer needs to be re-calibrated, the hydraulic body no need to be detached from the hydraulic cylinder. This modular design can greatly reduce the cylinder reset time and improve efficiency.

The transducer is rated for IP65 which offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. The connector (DIN 43650) is common for use in hydraulic device and easy for field connection. Besides for hydraulic system, it is also suitable for machine installation. The absence of electrical contact eliminates all wear and guarantees almost unlimited mechanical life expectancy.
