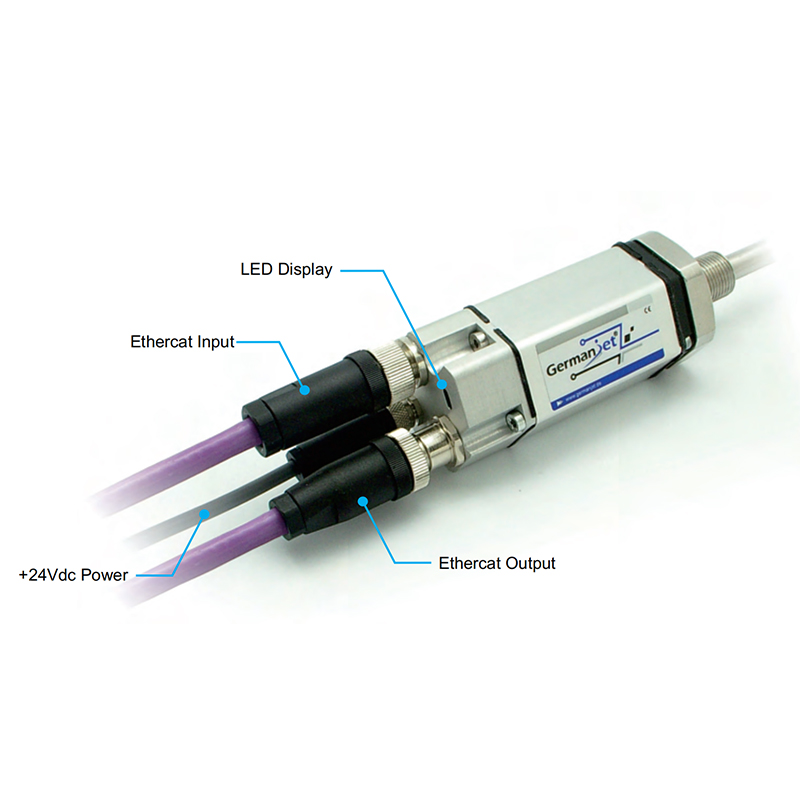

Ethercat 信號輸出直線位移傳感器Germanjet德敏哲

19系列磁懸浮/磁致伸縮位移傳感器特別針對苛刻環境應用設計，如煉油，化工，發電，制藥等。除了基本的模擬信號輸出，還提供更為豐富的通信接口（模擬量，SSI,CANOPEN,Profibus,profinet,Ethercat等）。 電子部分是可跟耐壓外管分離,只需撥出電子部份進行校淮。此設計減少重置液壓缸時間,大大提高生產效率。 所有型號符合IP67標準，保證能工作于苛刻和高塵埃污染的環境。輸出連接為業界常用的航空插頭,既方便又容易接線。

The 19 series non-contact absolute position transducer is specially designed for use in many harsh process applications such as refining, petrochemicals, power generation, and even pharmaceuticals. Beside available for basic analog output, it coexists alongside with other communication interface such as CANBus, Profibus, SSI, and Start / Stop.

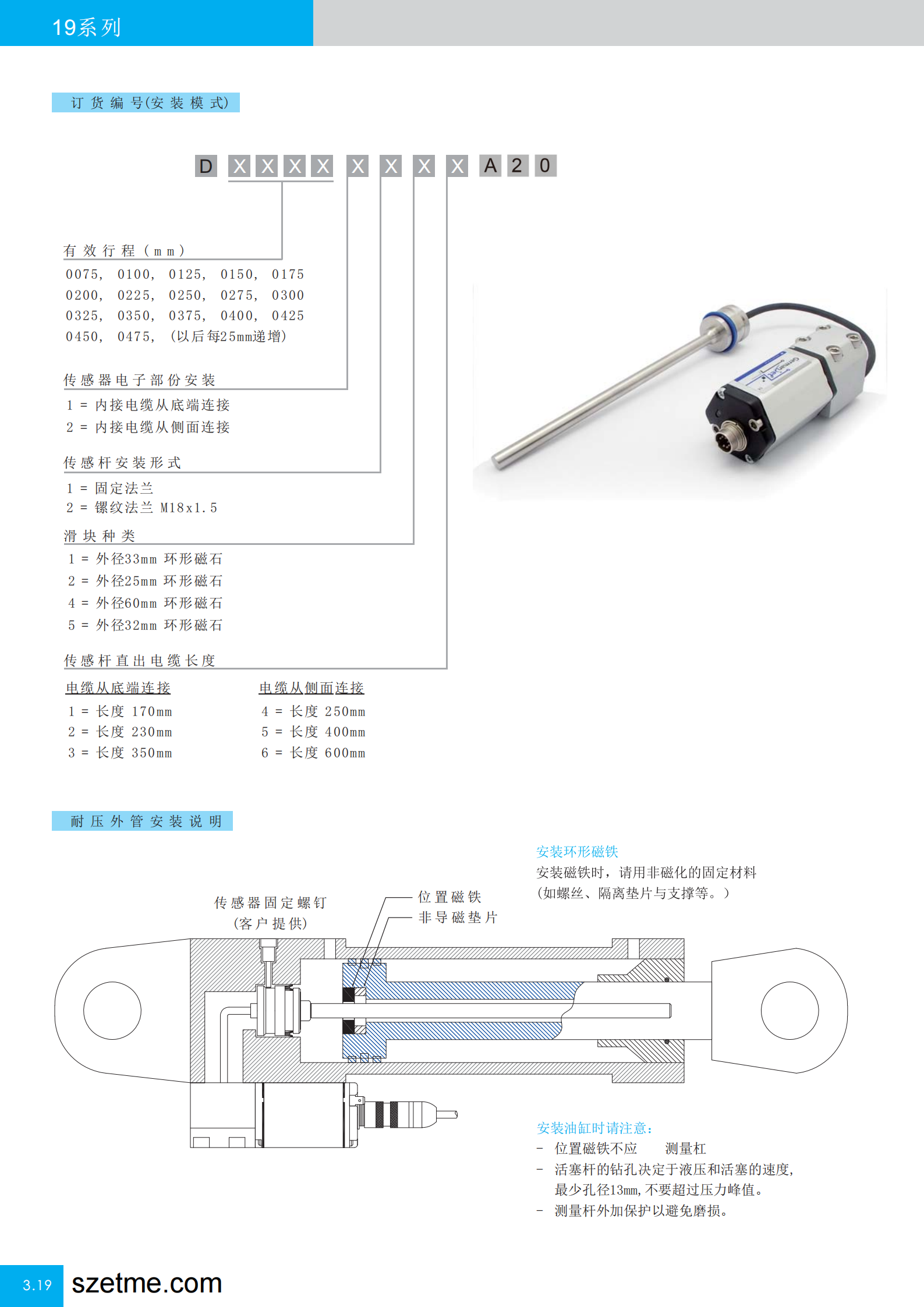

The transducer is available in hydraulic rod style, aluminium profile, and detachable model. All models rated for IP67 which offers full protection against outside agents for use in harsh environments with high contamination and presence of dust. The connector is common for field connection.
