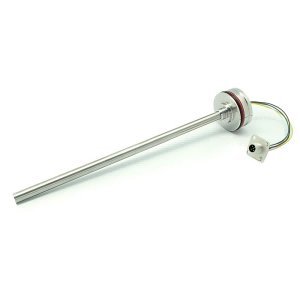

Germanjet德敏哲13系列 | 行走機械高效位置監測解決方案

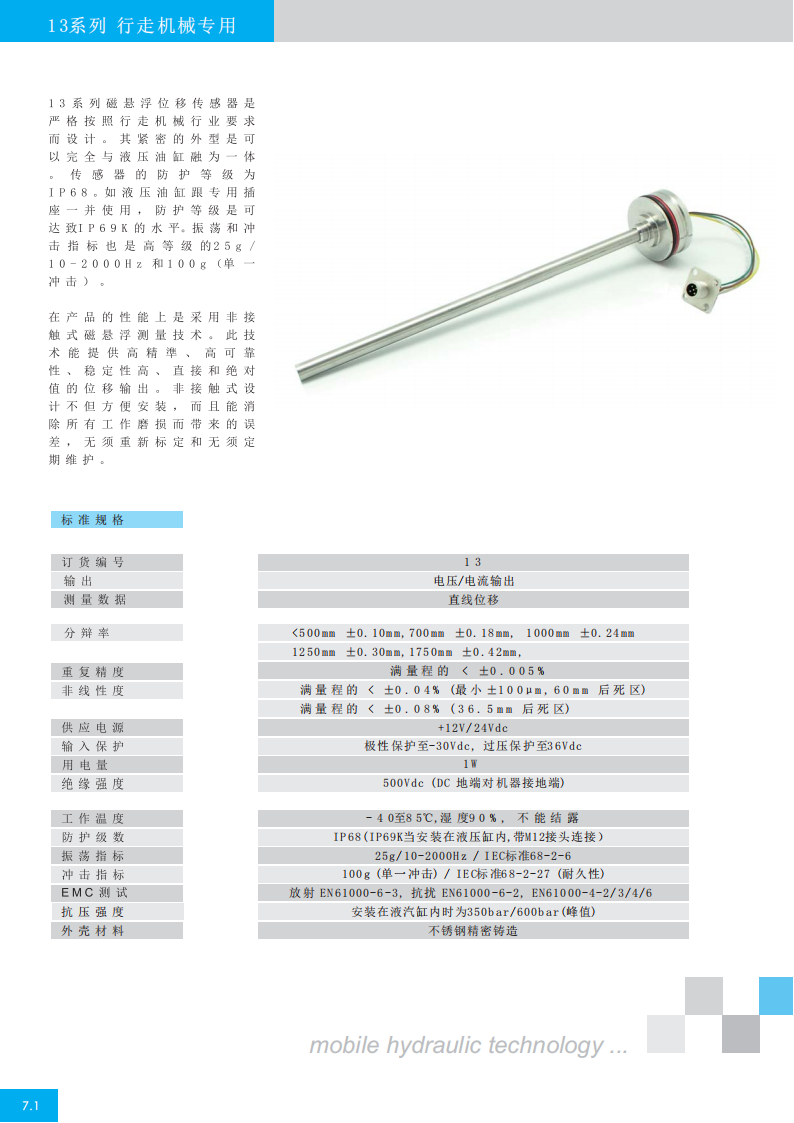

13 系列磁懸浮/磁致伸縮位移傳感器是嚴格按照行走機械行業要求而設計。其緊密的外型是可以完全與液壓油缸融為一體。傳感器的防護等級為IP68。如液壓油缸跟專用插座一并使用，防護等級是可達致IP69K 的水平。振蕩和沖擊指標也是高等級的25g / 10-2000Hz 和100g（單一沖擊）。 在產品的性能上是采用非接觸式磁懸浮測量技術。此技術能提供高精準、高可靠性、穩定性高、直接和絕對值的位移輸出。非接觸式設計不但方便安裝，而且能消除所有工作磨損而帶來的誤差，無須重新標定和無須定期維護。

13 series is designed in strict accordance with the requirements of the mobile machinery industry. Its compact shape can be fully integrated with the hydraulic cylinder with limited head space. The high versatile IP68 profile housing offers full protection for use in harsh environments with high contamination and presence of dust. If the hydraulic cylinder is used with a special connector, the protection level is up to IP69K. Vibration and shock rating are also high-level 25g / 10-2000Hz and 100g (single shock).

It adopts the non-contact magnet-rostrictive measuring technology for precise, accurate, and absolute measurement. The non-contact feature provides exceptional ease of installation and guarantees almost unlimited mechanical life expectancy.
